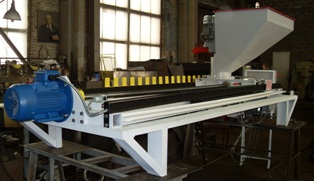

The divider stacker Ш33-ХД3-

The divider stacker is structurally executed on the basis of the divider "Kuzbass 68-2M" with a vertical auger. The divider stacker is designed to divide the dough from wheat flour of 1 grade with humidity to 47%, 2 varieties with humidity up to 48%, from rye flour with a moisture content up to 52% in pieces of equal mass and automatic stacking dough pieces into molds cradles restaino-furnaces of various types with capacity of 12...40 MT/day. The divider stacker carries out unfolding dough pieces in one direction, and then return to its original position. Specifications: The mass of dough pieces, kg 0,15...0,80 The dividing head with the pistons 110 mm Division accuracy, % 1,5 The volume of the hopper, L. 330 Stroke up to mm. 2070 The number of drives, PCs 3 The installed capacity of drives, kW., not more than 6.75 to Weight, kg not more than 400 - Performance is coordinated with the work restaino furnace unit and regulated by adjusting the frequency converters and controller at the factory. - Control system through a programmed controller. Each actuator is equipped with a frequency Converter. - Maybe different versions of the hopper (under testoboost or geopolitically). The advantages of the divider stacker: 1. vertical positioning screw of the camera significantly reduces its length, and therefore: after work - less dough in the auger chamber; - reduced mechanical action on the dough. 2. the presence of 3 frequency converters and controller allows you to adjust the divider stacker under any unit 3. the ease and simplicity of design. Weight not more than 400 kg. 4. two motor-reducer simplify the kinematic scheme and increase the reliability of the design; 5. on the inner surface of the hopper caused anti-adhesive coating; 6. the hinged hopper for easy cleaning; 7. moving truck divider stacker is via a pair of screw-nut, which is more reliable than chain and sprockets
